Product Overview

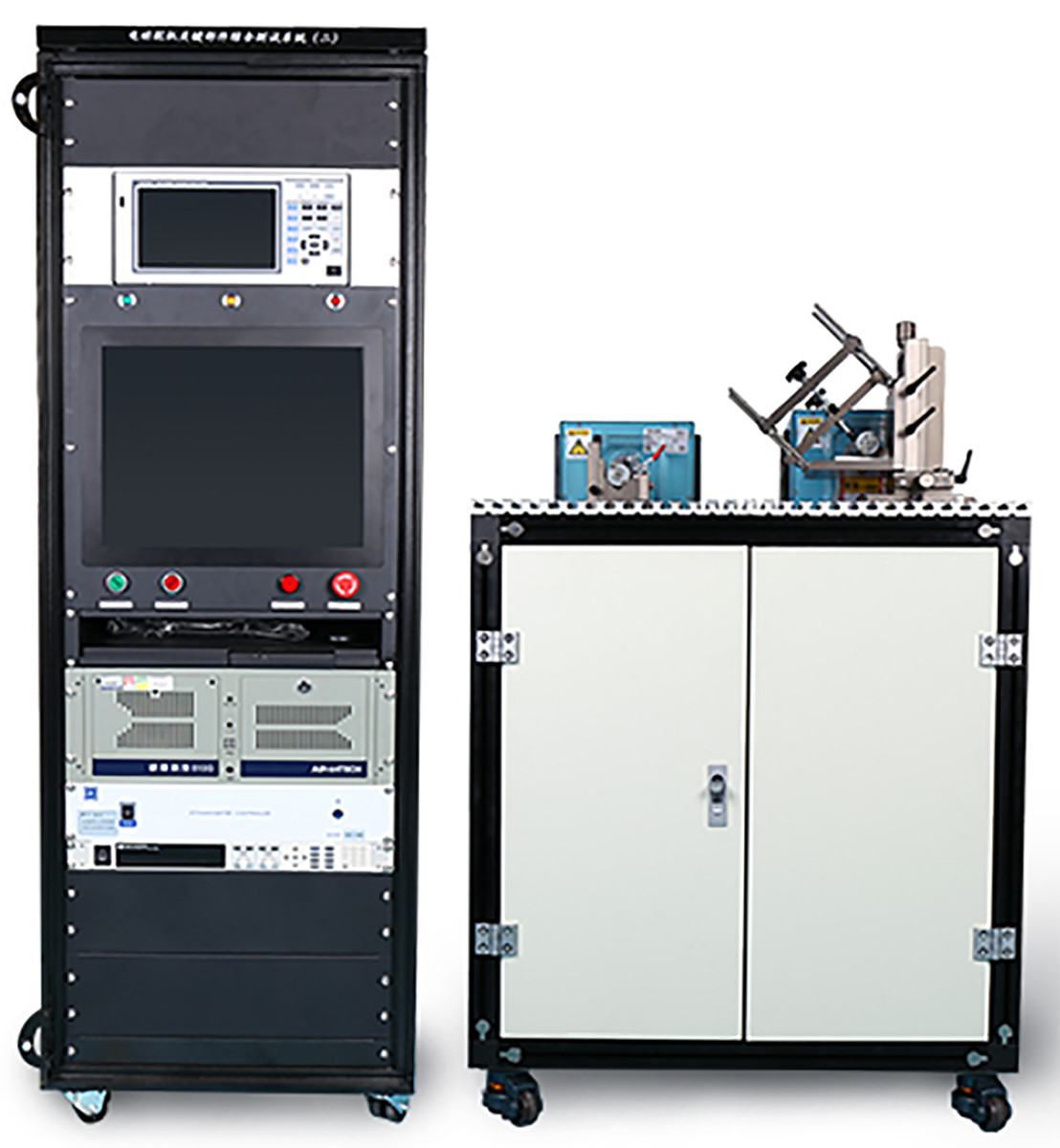

FT series example for the split-motor load performance test equipment, is composed of industrial control machine, magnetic particle dynamometer, hysteresis dynamometer, servo dynamometer, electric parameter acquisition card, motor power supply, etc., the electrical cabinet and the motor clamping platform is placed separately, a host cabinet, can be configured with a number of different ranges of the load test bench, this equipment is widely used in various colleges and universities, the military units, enterprise laboratories, to do data analysis, the standard motor fixture can be fixed shape 20-300mm range of motor. This equipment is widely used in the laboratories of various universities, military units, enterprises to do data analysis, the standard motor fixture can be fixed in the shape of 20-300mm range of the motor. The standard motor fixture can fix the motor in the range of 20-300mm. We accept customized motor shape fixture, please discuss with the business concerned for specific requirements. Delivery time is 70 days. Conventional power below 20KW, up to 50KW.

Functions:

testing items: torque, speed, output power, input power, current and voltage, equipped with standard software, which can output T-N five curve graphs, data query table.

Advantages:

full-featured, complete testing items, you can choose to add other test items, such as resistance test, inductance test, drive efficiency, phase current and voltage. Can test a variety of motor types, compatibility expansion.

explanation:

The FT series of test equipment is a small, easy-to-use unit that can be used for rapid motor performance testing and life testing.
The units provide accurate torque loads independent of speed, and test motors from no-load to stall, and are widely used for automotive motors, household appliance motors, power tool motors, compressor motors, and aerospace motors.

This equipment has continuous and intermittent power ranges with the ability to dissipate more heat in a short period of time (various torque/speed test ranges can be customized, please contact us), stable loading, long service life, and simple operation and clamping.
The FT series has a maximum test speed of up to 30,000 r/min, and an accuracy of up to 0.1% F-S. A variety of torque ranges are available, with metric/imperial units of kg-cm, N.m, mN.M, g.cm

The FT series has an accurate torque load of up to 30,000 r/min, with an accuracy of up to 0.1% F-S. JYCG series maximum test torque is 500N.m (5000kg.cm), the highest test accuracy of 0.5%; YT series maximum test torque up to 0.5N.m (5kg.cm), test accuracy of 5%. Voltage test range: 0-100V, current test range: 0-200A (AC and DC optional), electric parameter measurement base accuracy: 0.1%.

The device is a high-speed data acquisition capabilities of the instrument, can be used stand-alone, can also be used with the host computer (standard software), communication and interaction speed of 10 times / S. Standard software can be (closed-loop) fixed-point test, (open-loop) manual test, the whole test, qualified test, curve fitting and other functions.

Powerful database processing capability, using TDMS/XLS real-time data storage, easy to find and compare test data. Real-time online monitoring data, hardware and software intelligent protection, safety value setting protection (overload protection, over-voltage protection, over-current protection, etc.)

Note: 1. The above electrical parameter collection, motor power supply (providing only DC power without exceeding 7KW or the price of AC power supply), and loading equipment are all from Precision Motive brand. For customer-specified brands, prices will be discussed separately.
