Silent Electric Servo Press with Intuitive Touch Screen
Product Description:
The entire pressing process is divided into five stages: fast
forward, detection, pressing, holding, and return. When the machine
is turned on, it will automatically search for the mechanical
origin point. After setting the parameters, press the start button
to press the head to descend to the detection position at a fast
forward speed, and then descend at the detection speed to start the
detection process. The detection process continues until the set
detection limit position is reached. If the workpiece is not
detected at the detection limit position, the pressure head will
stop moving. At this time, the return to zero button can be pressed
to return to the mechanical origin; When the contact pressure
reaches the set value during the detection process, the pressure
head automatically switches to the pressing speed to start pressing
the workpiece. When pressed to the set position, the pressure will
be maintained according to the user's set holding time. After the
holding time is over, the pressure head will return to the set
working origin at the set speed.
Applications:

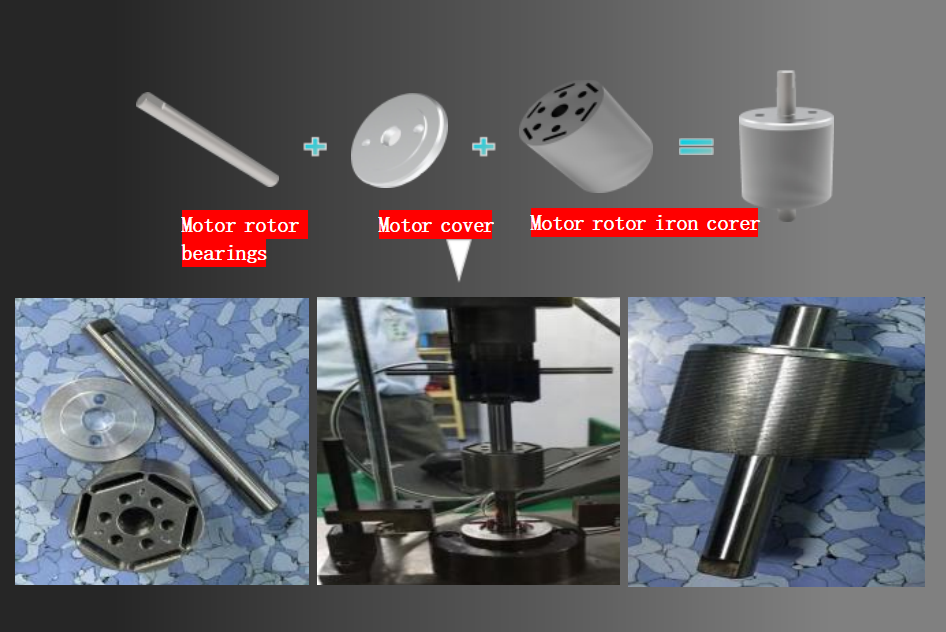

1. After the press fit is completed, the product quality is judged
based on the press fit results.
2.Real time recording of press fit data, capable of saving and
analyzing data. Placed in a location that is suitable for manual
operation, the operator can visually observe the position,
pressure, output, production status, and other data of all
monitoring points on the display.
3 The software is equipped with an alarm function, which can set
the product load range or displacement range according to
requirements. If the real-time data is not within the range, the
device will automatically sound an alarm.
4. The equipment is equipped with a safety grating to ensure the
safety of operators.
5. The machine is equipped with an alarm, and the buzzer will sound
when a malfunction occurs
| Number | Project | Technical Indicators/Requirements | Remarks |
| 1 | Rated pressure range | 2 0 0 0 N ( 2 0 0 Kg ) / 5 0 0 0 N ( 5 0 0 Kg ) / 10000N(1000Kg)/
20000N(2000Kg) | Support customization and optional selection |
| 2 | Pressure accuracy | ±0.3%F.S | |
| 3 | Pressure resolution | 0. 1N(0.01kg) | |
| 4 | Opening height | 350/400mm | Support customization and optional selection |
| 5 | Maximum travel distance | 250mm / 300mm | Support customization and optional selection |
| 6 | Compression speed | 0.01-30mm/s | Support customization and optional selection |
| 7 | Displacement resolution | 0.001mm | |
| 8 | Repetitive positioning accuracy | ±0.01mm | |
| 9 | Maximum speed without load | 200mm/s | |
| 10 | Test rack | Support customization and optional selection | Support customization and optional selection |
Packing and Shipping:
Product Packaging:
The Servo Presses will be carefully packaged to ensure safe
delivery to our customers. Each press will be wrapped in protective
material and placed in a sturdy cardboard box with additional
cushioning material to prevent any damage during shipping.
FAQ:
Q: What is the brand name of the servo press product?
A: The brand name of the servo press product is Precision Motive.
Q: What is the model number of the servo press product?
A: The model number of the servo press product is SERV0-1.
Q: Where is the servo press product manufactured?
A: The servo press product is manufactured in China.
Q: What types of applications is the servo press product suitable
for?
A: The servo press product is suitable for a wide range of
applications, including precision assembly, pressing, punching, and
forming.
Q: What are the key features of the servo press product?
A: The servo press product features high accuracy, high speed, and
high repeatability, making it ideal for precision manufacturing
processes.
